Flotation machine

Return to Products
Flotation machine

The flotation machine with other names of flotation cell and flotation separator, made by the famous Chinese flotation machine manufacturer - Fote Heavy Machinery, is mainly used not only to separate non-ferrous metals such as copper (usually using the copper ore flotation machine), zinc, lead, nickel and gold, but also to realize the rougher or fine flotation of the ferrous metals and non-metals like coal fluorite and talc.

Processing ability: 0.2-16m³/min

Processed materials: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral and chemical raw materials, recovery of useful minerals

Overview

Flotation operation process:

In the flotation cell or copper ore flotation machine, the ore pulp after mixing with the drugs is inflated with air through the stirring process, which makes some ore particles stick onto the air bubble selectively. The particles slowly float on the ore pulp surface and then are scraped to form foam products. The rest materials will remain inside the ore pulp, thus realizing the flotation process.

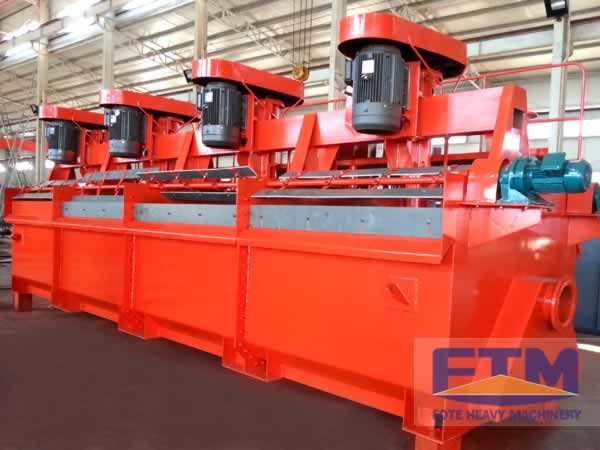

flotation machine

Structural features of flotation machine:

Fote’s copper ore flotation machines are famous for the reasonable flotation price, so they get popular in the Chinese market. The flotation machine is made up of ore pulp bearing tank, mixing device, air inflation device, bubble formation device and electric motor.

1. The ore pulp bearing tank of flotation cell is made up of the tank welded with the steel plate and the gate welded by steel rod.

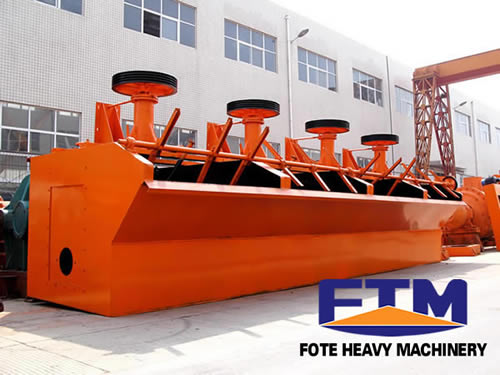

Flotation machine

2. The mixing device of flotation separator or flotation cell made up of belt wheel, impellor and vertical shaft is used to stir the ore pulp in order to prevent the mineral sand from precipitating in the tank.

3. The air inflation device consists of many intake tubes which will blow air to the minerals and make them form bubble groups.

4. The bubble formation device of flotation cell and flotation separator mainly scrapes the foam on the tank surface out and the reducer of the device is driven by the motor and then drives the scrape blade of copper ore flotation machine to work.

flotation machine

Maintenance of flotation cell:

1. The production ability and life expectancy of the machine depends on maintenance and the normal work of the main parts. So it is required that every 3-4 months, all parts of the machine should be checked. And for the new flotation machine, frequent check is needed.

2. Only skilled workers can check the machine.

3. In order to replace the parts in time and shorten the stop time, a full set of wearing parts should be prepared in the warehouse.
