Disk grain making machine

Return to Products

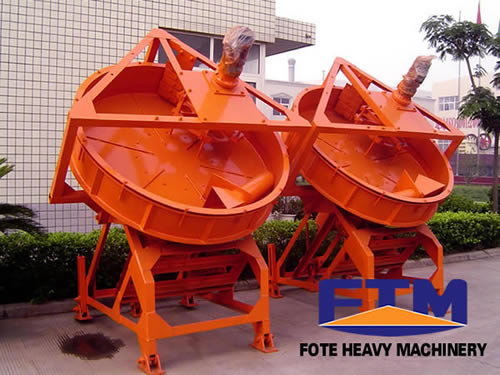

Disk grain making machine

The disk grain making machine which is also named disk granulator, round disk granulating machine or the disk fertilizer granulating machine is made up of the following parts: large disk, big gear, drive part, main frame, bottom case, scraper holder and unpowered scraper.

Supply Ability: 20 Set/Sets per Month

Warranty: 12 Month

Production capacity: 4-24t/h

Feature: Flexibility,Reduced power consumption,Smooth starting

Overview

Introduction:

The disk grain making machine adopts the comprehensive arc structure which can realize the granulation rate of over 93%.The disk grain making machine is often used to handle non-sticky materials in powdery or bulk shapes such as coal power, cement, clinker and chemical fertilizer.

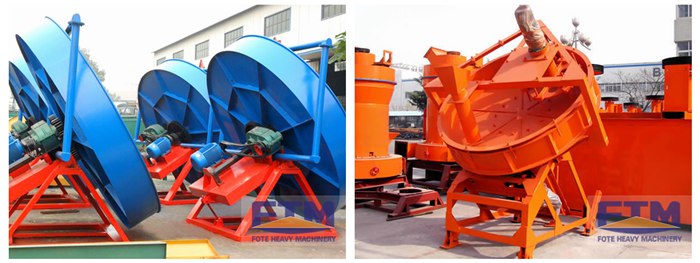

Disk grain making machine

Structures:

Disk grain making machine consists of large plate, large gears, transmission parts, frame, chassis, blade holders, non-powered scrapers and other components.

1. Main disk grain making machine, including the rack, adjust parts, and granulation disc structure

2. One main speed reducer one, input shaft with a pulley, one output shaft with pinion.

3. One primary motivation equipped with a pulley.

4. Supporting devices, including spindles, two sets of roller bearings, and two bearing pedestals.

Disk grain making machine

Features:

1. The firm bottom case design with the increased thickness and weight makes the machine operate smoothly and steadily without the bolting structure on the floor.

2. The gear of the main engine adopts the high frequency quenching which doubles the service life of the disk grain making machine.

3. The machine can make particles evenly with high granulation rate and reliable performance.
