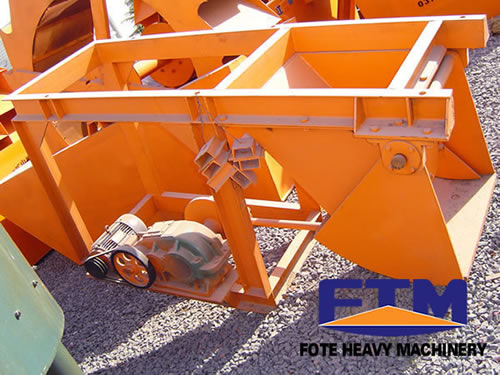

Pendulum feeder

Return to Products
Pendulum feeder

The pendulum feeder (also called pendulous feeder or the pendulum feeding machine) with the function of feeding bulk and particle materials from the storage bin to the receiving device evenly, regularly and continuously plays a role in the sand making production line of providing the crushers with well-distributed materials.

Feeding Granularity: 35-50mm

Production Capacity: 0-25t/h

Application Range: Suitable to be used in ore beneficiation, coal, chemistry and other departments for sending granulous materials from stock chest to various types of material receiving devices through funnel

Overview

Introduction to pendulum feeder:

Fote feeding machines with reasonable pendulum feeder price are widely used in the industries of metallurgy, coal mine, ore beneficiation, construction materials, chemical engineering and grinding industry etc. However, the pendulum feeder is not good at transporting dry powder or large sized materials because it will cause powder pollution and blocking problem to the discharging port.

Working principle of pendulum feeder:

V belt drive forced pendulum feeder motor deceleration. The deceleration momentum is passed to adjustable eccentric wheel. Driven by eccentric wheel through swinging plate, connecting rods made to wiggle. Ore through feeder in the body cavity discharges again and again to the outside to ensure that uniform feeding for mill. If you want to adjust the feeder for ore reserves, you can change the stroke length of the swing. Adjusting feeding amount on a large scale, adjust height of outlet gate, and change the discharge port size to make precise adjustment of feed quantity.

Features of pendulum feeder:

1. The pendulum feeder has many advantages such as simple structure, easy to adjust, high efficiency and reliable performance.

2. Its little weight and small size make it easy to maintain, and the closed type of design can prevent dust pollution.
