Agitator type flotation machine

Return to Products
Agitator type flotation machine

The agitator type flotation machine, also called the agitator type flotation cell or the agitator type flotation separator, works as a kind of air self-suction flotation machine which is good at the separation of non-ferrous metals and non-metal minerals.

Processing ability: 0.2-16m³/min

Processed materials: non-ferrous metals, ferrous metals, precious metals, non-metallic mineral and chemical raw materials, recovery of useful minerals

Overview

Brief introduction to agitator type flotation machine:

The characteristic of the agitator type flotation machine is that the air and pulp are mixed by the mechanical mixing device. The XJK type agitator type flotation cell is the most popular machine in the Chinese market and it has the other name of “A-type flotation machine”.

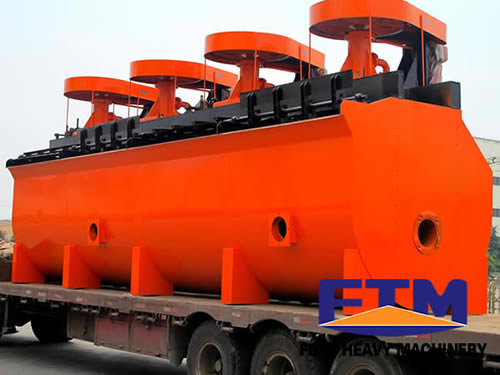

Agitator type flotation machine

Features of agitator type flotation cell:

1. There won’t appear the argillic alteration during the mixing process, thus realizing high separating efficiency.

2. The flotation machine has adopted the advanced manufacturing technology which can prolong the service life of the equipment.

3. The separator can suck air on its own.

4. It’s easy for users to operate the flotation cell because of its high automation degree.

Agitator type flotation machine

Working Principle of agitator type flotation machine:

When the flotation machine works, along with the rotation of the impeller, pulp from bottom of the tank sucked to the space between the impeller from the lower end of the impeller. At the same time, the low-pressure air also into it through the hollow shaft and air distributor of the impeller. After fully mixed of pulp and air, they are pushed from the upper part of the impeller to the diagonal and enter into the tank after the stator current and direction set. Bubbles rising into the foam-stable region, after the enrichment process, foam from the overflow weir of gravity overflow into the foam slot. Also a part of the pulp to the flow in the lower part of the impeller, impeller mixing, remix mineralization bubbles formed, the remaining pulp into the next slot, until it eventually becomes tailings.

Recommend Products

Related Solutions

Magnetic separation process
Magnetic separation process

The magnetic separation process, also named the magnetic separating production line and made up of jaw crusher, ball mill, classifier, magnetic separating equipment, concentrator and dryer, is a wet and dry separation combination method of magnetite.

Productivity: 10-280t/h

Production process: Storage bin—feeder—jaw crusher—jaw fine crusher—ball mill—spiral classifier—magnetic separator(fine powder). These machines are all connected by the belt conveyors.

Flotation separation process
Flotation separation process

The flotation separation process also known as the flotation separating production line realizes the mineral particle separation based on the working principle of different physical and chemical properties of the minerals leading to different floatability.

Productivity: 0.18-7 (m³/min)

Technological characteristics: high efficiency, low energy consumption, great handling capacity, economical performance and wide range of application
